RAPID projectors whose special feature lies in the easy assembly in the pool thanks to the connection in 1 “1/2 nozzles.
With an extra-flat front to offer an integrating design in the pool. Thanks to the adapters, it can also be installed in a Ø59 bushing or 2 “thread and in Ø63 tubes in both PN6 and PN10. You can also install it in the Lumiplus Mini 53596 and 59983 niches (only the liner model)
Available in the following light colors: cold white, warm white, RGB and RGB-Wireless.
The RGB model is compatible with the LumiPlus Eco, LumiPlus Top, LumiPlus LED APP and LumiPlus Modbus controls.
The Wireless V1 model is compatible with the Lumiplus Control Motion.
Supplied with replaceable 2 x 1mm2 cable and a length of 2.5 m.
To properly illuminate a swimming pool, it is recommended to install a LumiPlus Rapid family projector every 20 m² of water surface.
Note: Valid recommendations for pools with light colors and for projectors with white light, oversize in RGB colors. In pools of dark colors or stainless steel it is recommended to oversize the proportion of projectors per m2.
Power Consumption White: 16W (24VA)
Power Consumption RGB: 27W (37 VA)
Power: 12Vac
Lifespan: L70 – 50,000h

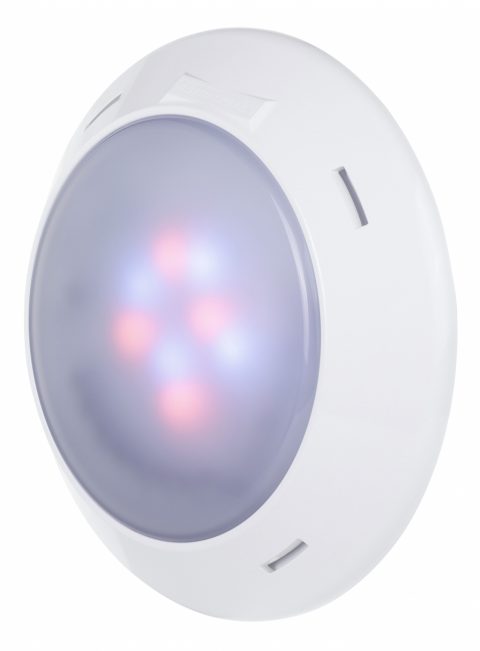

LIGHTING LUMIPLUS RAPID
Availability: In stock
Be the first to review this product
Quick Overview
RAPID projectors whose special feature lies in the easy assembly in the pool thanks to the connection in 1 “1/2 nozzles.
With an extra-flat front to offer an integrating design in the pool. Thanks to the adapters, it can also be installed in a Ø59 bushing or 2 “thread and in Ø63 tubes in both PN6 and PN10. You can also install it in the Lumiplus Mini 53596 and 59983 niches (only the liner model)
Available in the following light colors: cold white, warm white, RGB and RGB-Wireless.
The RGB model is compatible with the LumiPlus Eco, LumiPlus Top, LumiPlus LED APP and LumiPlus Modbus controls.
The Wireless V1 model is compatible with the Lumiplus Control Motion.
Supplied with replaceable 2 x 1mm2 cable and a length of 2.5 m.
To properly illuminate a swimming pool, it is recommended to install a LumiPlus Rapid family projector every 20 m² of water surface.
Note: Valid recommendations for pools with light colors and for projectors with white light, oversize in RGB colors. In pools of dark colors or stainless steel it is recommended to oversize the proportion of projectors per m2.
Power Consumption White: 16W (24VA)
Power Consumption RGB: 27W (37 VA)
Power: 12Vac
Lifespan: L70 – 50,000h
Additional information
| LIGHTING LUMPLUS RAPID | CONCRETE RGB Projector 27W – 12VAC, CONCRETE RGB Wireless Projectors 27W – 12VAC -, CONCRETE RGB Wirless Projector with remote control 27W – 12VAC, CONCRETE White Light Projectors – 16W – 12VAC, LINER RGB Projector 27W – 12VAC, LINER RGB Wirless Projector – 27W – 12VAC, LINER RGB Wirless Projector with remote control – 27W – 12VAC, LINER WHITE Light Projector 16 W – 12VAC |
|---|
