Lumiplus Projector PAR56 – Cup Model

Availability: In stock

Sku:

Be the first to review this product

Quick Overview

Lumiplus Projector PAR56

The white light versions are powered at 24Vdc and have the power supply included and the RGB versions are powered at 12Vac by a transformer.
To complete the LumiPlus PAR56 luminaires you must purchase the niche separately. Available niches for concrete pool and prefabricated pool / liner / panels.
Available in the following light colors: cold white, warm white, RGB, RGB-Wireless and RGB-DMX.
The RGB model is compatible with the LumiPlus Eco, LumiPlus Top, LumiPlus LED APP and LumiPlus Modbus controls. The RGB DMX model requires the Lumiplus DMX 41107 Modulator driver.
The Wireless model is compatible with the Lumiplus Control Motion.
To correctly illuminate a swimming pool it is recommended: install a LumiPlus V1 family projector every 20m² of water surface or a LumiPlus V2 family projector every 25m² of water surface.
Note: valid recommendations for pools with light colors and for projectors with white light, oversize in RGB colors. In pools of dark colors or stainless steel it is recommended to oversize the proportion of projectors per m².
The projectors must always be installed submerged in water.
Power Consumption version V1 White DC: 14W (14VA)
Power Consumption version V1 White AC: 16W (24VA)
Power Consumption version V1 RGB / RGB Wireless: 27W (37 VA)
Power Consumption version V2 White DC: 32W (32VA)
Power Consumption version V2 RGB / RGB DMX: 48W (64 VA)
Power: 24Vdc (DC white light models) / 12Vac
Lifespan: L70 – 50,000h

Global Versions: Sea water resistant
Standard Versions: Not resistant to sea water

Clear
Quantity



content

Lumiplus Projector PAR56

The white light versions are powered at 24Vdc and have the power supply included and the RGB versions are powered at 12Vac by a transformer.
To complete the LumiPlus PAR56 luminaires you must purchase the niche separately. Available niches for concrete pool and prefabricated pool / liner / panels.
Available in the following light colors: cold white, warm white, RGB, RGB-Wireless and RGB-DMX.
The RGB model is compatible with the LumiPlus Eco, LumiPlus Top, LumiPlus LED APP and LumiPlus Modbus controls. The RGB DMX model requires the Lumiplus DMX 41107 Modulator driver.
The Wireless model is compatible with the Lumiplus Control Motion.
To correctly illuminate a swimming pool it is recommended: install a LumiPlus V1 family projector every 20m² of water surface or a LumiPlus V2 family projector every 25m² of water surface.
Note: valid recommendations for pools with light colors and for projectors with white light, oversize in RGB colors. In pools of dark colors or stainless steel it is recommended to oversize the proportion of projectors per m².
The projectors must always be installed submerged in water.
Power Consumption version V1 White DC: 14W (14VA)
Power Consumption version V1 White AC: 16W (24VA)
Power Consumption version V1 RGB / RGB Wireless: 27W (37 VA)
Power Consumption version V2 White DC: 32W (32VA)
Power Consumption version V2 RGB / RGB DMX: 48W (64 VA)
Power: 24Vdc (DC white light models) / 12Vac
Lifespan: L70 – 50,000h

Global Versions: Sea water resistant
Standard Versions: Not resistant to sea water

Additional information

Lumiplus Projector PAR56 Cup Model

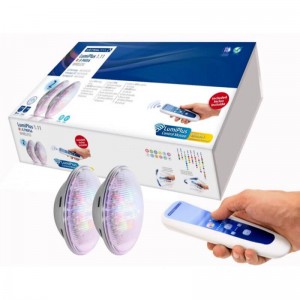

RGB V1 12VAC 27 Watts 1100 Lumens (NN), RGB V1 12VAC 48 Watts 2544 Lumens (NN), RGB V2 12VAC 48 Watts 2544 Lumens (DMX), RGB WIRLESS V1 12VAC 27Watts 1100Lumens 1 Lamp + 1 Control Motion, RGB WIRLESS V1 12VAC 27Watts 1100Lumens 1 Lamp + wirless, RGB WIRLESS V1 12VAC 27Watts 1100Lumens 2 Lamps + 1 Control Motion, White 12VAC 16 Watts 1485 Lumens, White V1 24VDC 14 Watts 1485 Lumens, White V2 24VDC 32 Watts 4320 Lumens
