Lumiplus Projector PAR56 Flat Model

Availability: In stock

Sku:

Be the first to review this product

Quick Overview

PAR 56 replacement lamps

PAR56 LED lamp, developed to obtain maximum efficiency in electrical consumption. Use in swimming pools, where a good and homogeneous distribution of light is required.

The white light versions are powered at 24Vdc and have the power supply included and the RGB versions are powered at 12Vac by a transformer.
Compatible with PAR56 projectors.
Available in the following light colors: cold white, warm white, RGB, RGB-Wireless and RGB-DMX.
The RGB model is compatible with the LumiPlus Eco, LumiPlus Top, LumiPlus LED APP and LumiPlus Modbus controls. The RGB DMX model requires the Lumiplus DMX 41107 Modulator driver.

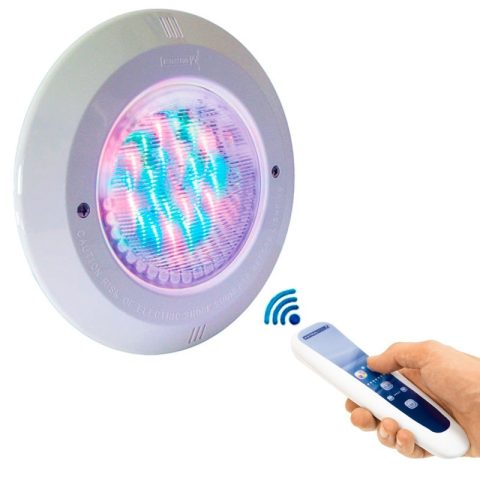

The Wireless model is compatible with the Lumiplus Control Motion.
In order to properly illuminate a swimming pool, it is recommended to install a lamp of the LumiPlus V1 family every 20m² of water surface or one of the LumiPlus V2 family every 25m² of water surface.
Note: valid recommendations for pools with light colors and for projectors with white light, oversize in RGB colors. In pools of dark colors or stainless steel it is recommended to oversize the proportion of projectors per m².
The lamps should always be installed submerged in water.
Power Consumption version V1 White DC: 14W (14VA)
Power Consumption version V1 White AC: 16W (24VA)
Power Consumption version V1 RGB / RGB Wireless: 27W (37 VA)
Power Consumption version V2 White DC: 32W (32VA)
Power Consumption version V2 RGB / RGB DMX: 48W (64 VA)
Power: 24Vdc (DC white light models) / 12Vac
Lifespan: L70 – 50,000h

Quantity



Add to Wishlist
Categories : Lumiplus Projector PAR56
content

PAR 56 replacement lamps

PAR56 LED lamp, developed to obtain maximum efficiency in electrical consumption. Use in swimming pools, where a good and homogeneous distribution of light is required.

The white light versions are powered at 24Vdc and have the power supply included and the RGB versions are powered at 12Vac by a transformer.
Compatible with PAR56 projectors.
Available in the following light colors: cold white, warm white, RGB, RGB-Wireless and RGB-DMX.
The RGB model is compatible with the LumiPlus Eco, LumiPlus Top, LumiPlus LED APP and LumiPlus Modbus controls. The RGB DMX model requires the Lumiplus DMX 41107 Modulator driver.
The Wireless model is compatible with the Lumiplus Control Motion.
In order to properly illuminate a swimming pool, it is recommended to install a lamp of the LumiPlus V1 family every 20m² of water surface or one of the LumiPlus V2 family every 25m² of water surface.
Note: valid recommendations for pools with light colors and for projectors with white light, oversize in RGB colors. In pools of dark colors or stainless steel it is recommended to oversize the proportion of projectors per m².
The lamps should always be installed submerged in water.
Power Consumption version V1 White DC: 14W (14VA)
Power Consumption version V1 White AC: 16W (24VA)
Power Consumption version V1 RGB / RGB Wireless: 27W (37 VA)
Power Consumption version V2 White DC: 32W (32VA)
Power Consumption version V2 RGB / RGB DMX: 48W (64 VA)
Power: 24Vdc (DC white light models) / 12Vac
Lifespan: L70 – 50,000h

Additional information

Lumiplus Projector PAR56 Flat Model

RGB DMX Global V2 12VAC 48 Watts 2544 Lumens, RGB DMX STD V2 12VAC 48 Watts 2544 Lumens, RGB DMX STD V2 12VAC 48 Watts 2544 Lumens Stainless Steel, RGB Global V1 12VAC 27Watts 1100 Lumens, RGB Global V2 12VAC 48 Watts 2544 Lumens, RGB STD V1 12VAC 27Watts 1100 Lumens, RGB STD V1 12VAC 27Watts 1100 Lumens Stainless Steel, RGB STD V2 12VAC 48 Watts 2544 Lumens, RGB STD V2 12VAC 48 Watts 2544 Lumens Stainless Steel, RGB Wireless Global V1 12VAC 27Watts 1100 Lumens 1 Lamp + 1 Control, RGB Wireless Global V1 12VAC 27Watts 1100 Lumens 1 Lamp + Wirless, RGB Wireless Global V1 12VAC 27Watts 1100 Lumens 2 Lamps + 1 Control, White Global V1 24VAC 14Watts 1485 Lumens, White Global V2 24VAC 32 Watts 4320 Lumens, White STD V1 24VAC 14Watts 1485 Lumens, White STD V1 24VAC 14Watts 1485 Lumens Stainless Steel, White STD V2 24VAC 32 Watts 4320 Lumens, White STD V2 24VAC 32 Watts 4320 Lumens Stainless Steel
