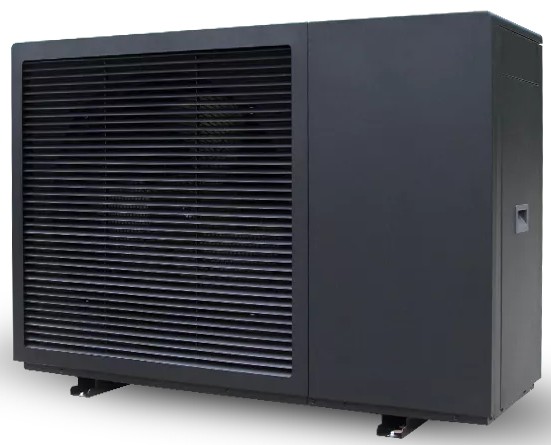

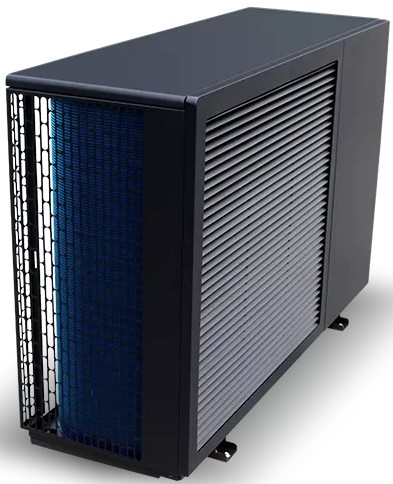

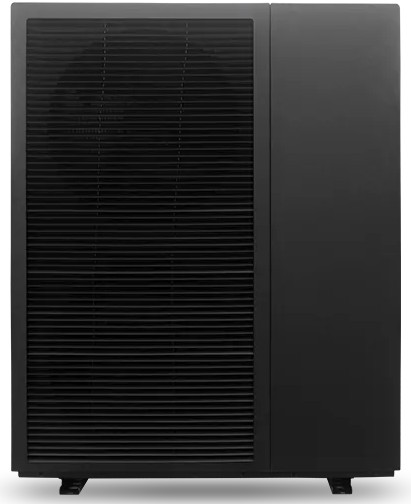

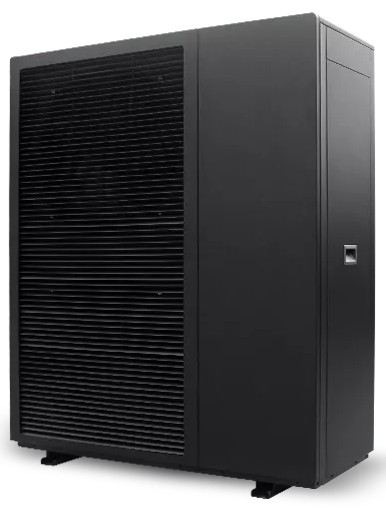

SolarEast R290 WiFi, Full Inverter, Heat Pump for House Heating + Cooling + DHW
*Aluminium grill + painted coated shell.
*Full inverter design with LOW GWP 3.
*Smart wifi control, SG Ready, RS-485 port
*Linkage control, IOT remote control.
*7 working modes (heating, cooling, DHW, floor heating,
heating+DHW, cooling+DHW, floor heating + DHW)
*Dual zone temp control.
*Powerful function: climate temperature curves, high temp
Sterilisation at 75 °C per week, cascade 16 units.
Model：                   BLN-012TC1  BLN-012TC3  BLN-018TC1  BLN-018TC3
Power Supply V/Ph/Hz      240/1/50     415/3/50     240/1/50     415/3/50
Nominal Heating (Max)                     (A7/6℃, W30/35℃)
Heating Capacity kWÂ Â Â Â Â Â Â Â Â Â 4.30 ~ 15.20 4.30 ~ 15.20 7.24 ~ 21.90 7.24 ~ 21.90
Power Input kWÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 0.87 ~ 3.73 0.87 ~ 3.73 1.50 ~ 5.88 1.50 ~ 5.88
Current Input AÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 4.02 ~ 16.38 1.78 ~ 6.04 6.86 ~ 30.25 2.82 ~ 9.16
COP W/WÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 4.07 ~ 5.57 4.07 ~ 5.57 3.82 ~ 5.59 3.82 ~ 5.59
Nominal Heating (Max)                       (A7/6℃, W47/55℃)
Heating Capacity kWÂ Â Â Â Â Â Â Â Â Â Â 4.25 ~ 14.55 4.25 ~ 14.55 6.36 ~ 19.45 6.36 ~ 19.45
Power Input kWÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 1.45 ~ 4.28 1.45 ~ 4.28 2.15 ~ 6.85 2.15 ~ 6.85
Current Input AÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 6.71 ~ 18.80 2.84 ~ 6.78 9.84 ~ 30.12 3.71 ~ 10.60
COP W/WÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 2.83 ~ 3.45 2.83 ~ 3.45 2.84 ~ 3.57 2.84 ~ 3.57
Nominal Cooling (Max)                         (A35/24℃, W12/7℃)
Cooling Capacity kWÂ Â Â Â Â Â Â Â Â Â Â 3.65 ~ 11.04 3.65 ~ 11.04 4.55 ~ 17.20 4.55 ~ 17.20
Input Power kWÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 1.12~3.97 1.12 ~ 3.97 1.85 ~ 7.31 1.85 ~ 7.31
Input Current AÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 5.18~17.44 1.97 ~ 6.30 8.47 ~ 32.1 2.99 ~ 11.26
ERP Level（Outlet water temp. at 35℃）   A+++ A+++ A+++ A+++
ERP Level（Outlet water temp. at 55℃）      A++ A++ A++ A++
Rated Input Power kWÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 5.40 5.85 7.5 10.5
Rated Input Current AÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 25.0 10.0 35.0 17.0
Refrigerant Type / Charge / GWP … / kg R290 / 1.05 / 3 R290 / 1.05 /3 R290 / 1.4 / 3 R290 / 1.4 / 3
Rated water flow m³/h                      2.06 2.06 3.1 3.1
Fan quantity                                     1 1 2 2
Fan motor type DC inverter
Compressor Highly DC inverter
Circulating pump DC inverter SHIMGE
Expansion tank                               6L 6L 8L 8L
Sound pressure at 1m distance dB(A)Â Â Â Â Â Â Â Â Â Â Â Â 53 54 56 56
Max. outlet water Temp. °C                     75 75 75 75
Water Piping Connections inch            G1 G1 G1 – 1 / 4 G1 – 1 / 4
Water Pressure Drop kPa                     20 20 55 55
Operating range (Heating mode) °C              -25~45
Operating range (Cooing mode) °C                16~45
IP Class IPX4
Unpacked Dimensions ( L×D×H ) mm 1287*448*904 1287*448*904 1187*488*1456 1187*488*1456
Packed Dimensions ( L×D×H ) mm 1317*493*1020 1317*493*1020 1217*538*1570 1217*538*1570
N.W/G.W kg                     134/146 134/146 195/208 195/208
