A simple, intuitive user interface is easy to program and operate.
Four quick operating speed settings.
Real-Time clock with 24-hour memory retention.
A revolutionized removable strainer basket with built-in thermal overload protection.
permanent magnet, totally enclosed fan-cooled (TEFC) motor offers incredible efficiency and reliability.
Low vibration
Cool Running & Long Lifetime Motor
The motor drive includes built-in protection for high temperatures and voltage fluctuations.
Motors and drives of advanced technology work perfectly together and ensure extremely quiet running.
2” port size
Variable speed design makes it extremely energy-saving
Simple, intuitive user interface, easy to
program and operate.
Four quick operating speed settings.
Real-Time clock with 24-hour memory retention.
A revolutionized removable strainer basket with a built-in thermal overload protection.
Permanent magnet, totally enclosed fan-cooled (TEFC) motor offers incredible
efficiency and reliability.
EPDM O-ring provides high resistance and avoids leakage
Stainless Steel 316 spring is applicable for seawater and freshwater
Wide voltage design applies to a voltage range from 200V to 250V
Copper coil ensures cool running and can bear a temperature rating of 180℃
Built-in thermal protector assures long motor lifetime
Cold rolled sheet inside the motor assures 100% high efficiency
High-precision Stainless Steel shaft reduces noise to 60dB
Thermostable oil bearing endures a temperature rating of 150℃
Insulation: F
Protection: IP54
Can save energy consumption as much as 97% at the lowest speed
Model: J250015
Voltage: 220-240
Heartz: 50/60
HP: 3.0
THP: 3.0
WEF: 6.8
Max Flow: 38m³/h
Lift: 30M
Weight: 17kg

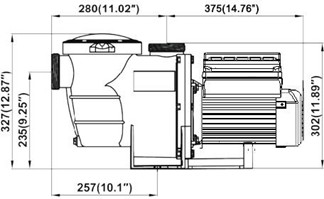

Dimensios 77.5×28.5×39 cm
