Inverter Single Phase 5KW not only for car Charging

Inverter Single Phase 5KW not only for car Charging

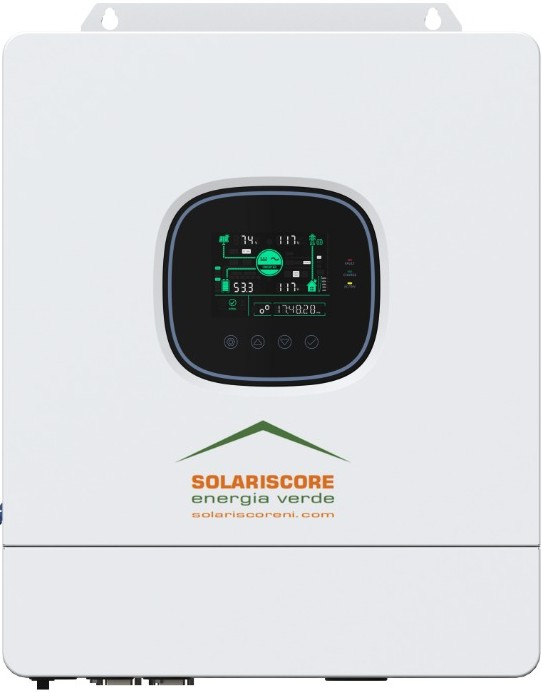

SYP 5K-S  Solar storage inverter

Efficiency

advanced MPPT technology with up to 99.9% efficiency
Up to 22A PV input current for high-power PV module

Safety

360 degrees of security from hardware to software
IEC safety approvals

All in one

Up to 100A hybrid charging current

Reliable

Outputs high-quality pure sine wave AC power
Up to 6 units in parallel connection

User-Friendly

Industrial design with a modern aesthetic look
Easy to install and simple to use

Intelligent

Exclusive Li-ion battery BMS dual activation
Time-slot function to save cost with peak-valley

MODEL SYP 5K-S                    INVERTER OUTPUT
Rated Output Power                5,000W
Max.Peak Power                       10,000VA
Rated Output Voltage              230Vac（L/N/PE single-phase） ✓
Load Capacity of Motors         4HP
Rated AC Frequency                 50/60Hz ✓
Waveform                                   Pure sine wave
Switch Time                               10ms（typical）
Parallel Capacity                       1-6 units（single/three phase）
BATTERY
Battery Type                               Li-ion / Lead-acid / User-defined ✓
Rated Battery                             Voltage 48Vdc
Voltage Range                           40～60Vdc ✓
Max.MPPT Charging Current                          100A ✓
Max.Mains/Generator Charging Current     60A ✓
Max. Hybrid Charging Current                        100A ✓
PV INPUT
Num. of MPPT                          1
Max.PV array power               5,500W
Max. input current                  22A
Max.Voltage of Open Circuit 500Vdc
MPPT Voltage Range              120～450Vdc
MAINS / GENERATOR INPUT
Input Voltage Range               90～280Vac ✓
Frequency Range                     50/60Hz
Bypass Overload Current       40A
EFFICIENCY
MPPT Tracking Efficiency           99.9%
Max. Battery Inverter Efficiency 92%
GENERAL
Dimensions                              446.9*350*133mm
Weight                                       13kg
Protection Degree                   IP20, indoor only
Operating Temperature Range     -10~55℃
Noise                                         ≤60dB
Cooling Method:                     forced air cooling with adjustable air speed
Warranty                                  5 years
COMMUNICATION
Embedded Interfaces            RS485 / USB / Dry contact ✓
External Modules Optional Wi-Fi/GPRS ✓
